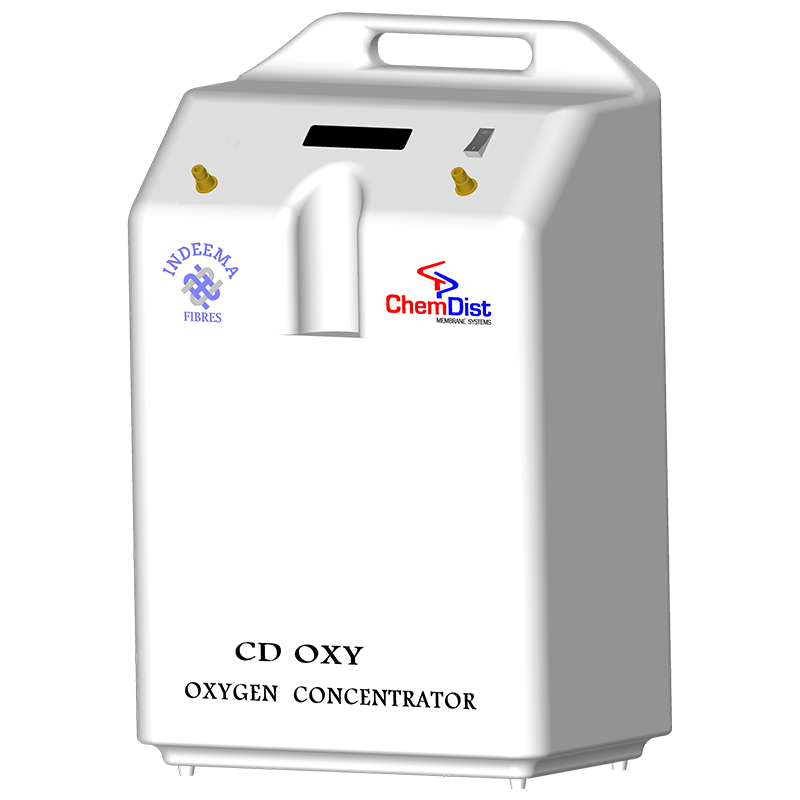

Oxygen Concentration Technology :

---

---

Features :

⦁ Low and easy maintenance
⦁ Oxygen purity of 93% +/- 3% at 8 LPM
⦁ Designed for Medical and in-house use

Parameter/Feature	8 LPM
Total Machine Weight	50 kg
Total Dimensions (L x B x H)	700 mm x 300 mm x 600 mm
Power Input	1 Phase AC
O2 Flow Rate	8 LPM
O2 Purity	95±1 %
Noise Level	65 dB
Warranty	1 Year
Working Temperature	5 to 40 Deg C
Compressor Output Pressure Gauge	No
Ambient Altitude of Operation	Mean Sea Level
Air Humidifier	Yes
Product Description	Portable Unit
Life*	6 Years
* Life of Concentrator column 18000 Hours. Use of product is assumed to be 8 hours per day

Highlights :

⦁ PSA (Pressure Swing Adsorption) Based Oxygen Generation.
⦁ Products for high altitude operations available.
⦁ Customized Oxygen Generation plants for various industrial applications.
⦁ O2 generation Plants (medical) of capacity 80 LPM to 500 LPM & higher available.
⦁ Products for Higher Purity up to 98% available.
⦁ In built Oxygen analyzer to measure the purity.
⦁ Display for Hour count, Purity safety indication installed.
